Charging, Load & Energy Management Systems
Control and monitoring of system components
Maximise grid connection capacity
Reduce load peaks
Control & monitor system components
Demand-based power distribution
About Charging, Load, and Energy Management

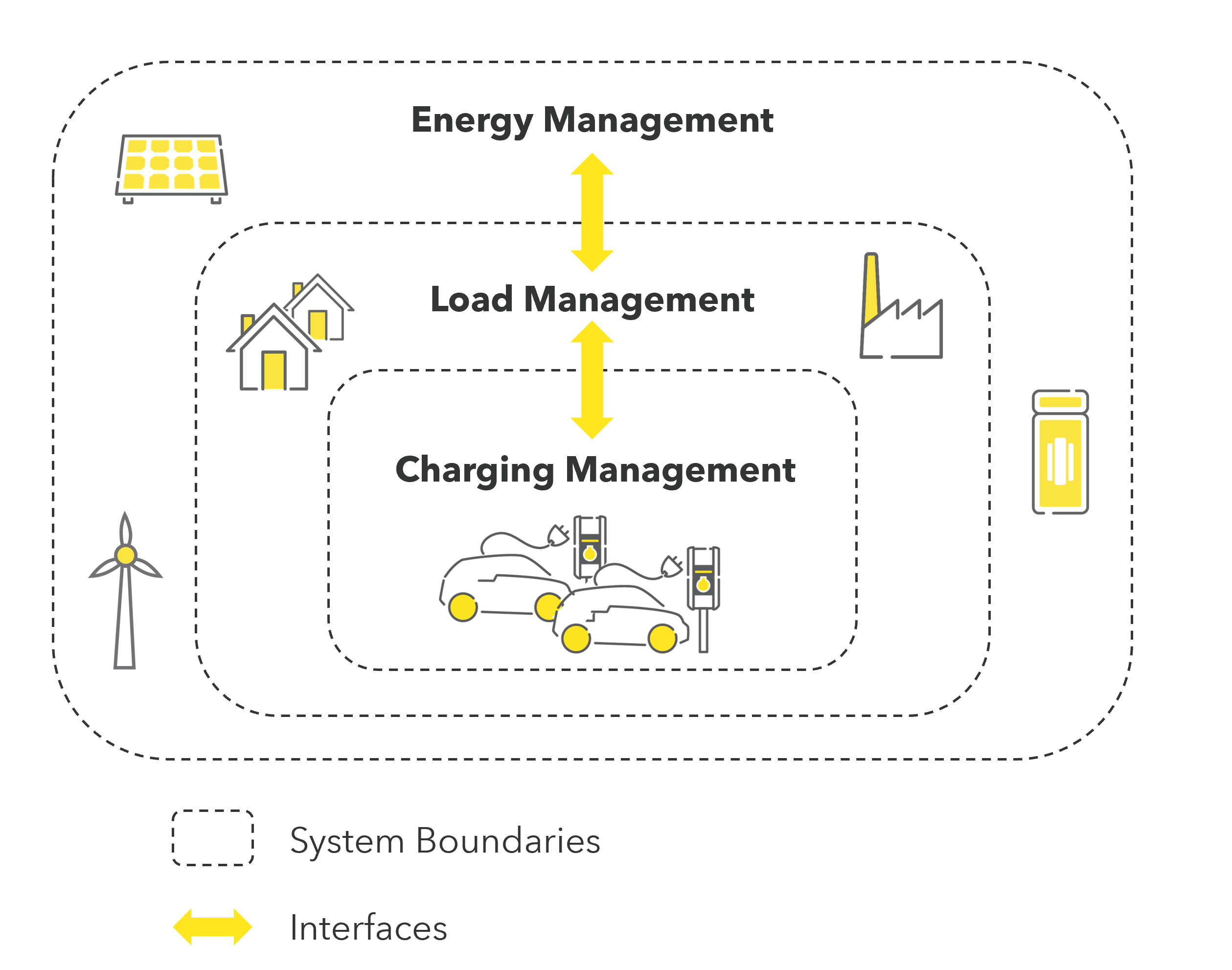

Distinguishing between the different systems
An electric energy management system controls and monitors an energy system and its components, taking into account both energy consumers and producers. This includes managing both electrical consumption and generation, such as from renewable sources or storage systems.
Load management refers to the targeted reduction or increase of electrical loads. These loads can include charging infrastructure, industrial equipment, or other electrical consumers. Load management can thus be a part of a broader energy management system, aiming to optimize power distribution and reduce peak loads.
Charging management specifically controls and monitors the charging of electric vehicles, taking into account various vehicle characteristics and charging strategies. It is a specialized form of load management, with the key task of distributing available charging power across multiple charging points without exceeding power limits.
Benefits of Energy Management Systems
Reduce Costs
With dynamic load management, you can avoid costly load peaks by efficiently distributing charging power. This significantly reduces your demand charges and overall energy costs.
Charge More Efficiently
Energy controllers allow you to actively manage your power consumption and prioritize specific devices, such as individual charging stations, in the power distribution process. This enables you to charge your electric vehicles based on their specific needs, even with varying parking times.
Minimize Risk of Outages
By evenly distributing the available power at all times, you ensure a consistent load on the public power grid. This contributes to a stable grid operation and reduces the risk of power outages caused by excessive grid demand.
Static vs. Dynamic Load and Charging Management
Charging management systems distribute the available charging power across charging points without exceeding the power limit. Charging infrastructure meets various user needs using load and charging management systems: maximizing existing grid connection capacity, avoiding costly load peaks, and meeting user-specific mobility requirements.
- In static load/charging management, a specific yet contant amount of charging power is reserved for all charging stations. The other power demands at the connection point are not considered.
- In dynamic load/charging management, the charging power for the infrastructure can change and be dynamically allocated. The charging power can be adjusted based on an energy meter at the connection point or by an external control system, allowing for real-time adaptation to the overall energy consumption and grid conditions.
Energy Controllers: Full System Integration and Control
By using energy management controllers, components such as charging infrastructure, photovoltaic systems, and battery storage can be efficiently monitored, managed and integrated into an energy system. Energy management controllers ensure that available power is optimally distributed across charging points without causing costly load peaks. This enables simultaneous charging of multiple electric vehicles without requiring significant investments in grid expansion.
With the use of energy management controllers, you can:
- Ensure compliance with available power capacity and technical grid connection conditions.
- Reduce electricity costs by capping load peaks.
- Distribute available power based on demand, for example, prioritizing the charging of electric vehicles.
- Fully integrate electrical consumers, generation systems, and storage units.
- Implement dynamic power allocation for charging infrastructure, considering building loads, secondary loads, PV systems, and battery storage.
Charging, Load, and Energy Controllers for Your Charging Infrastructure
Solutions for Performance Optimisation
Alfen Smart Charging Network
Proprietary Load/Charging Management System
Alfen’s Smart Charging Network (SCN) software distributes the available power from the local grid connection across all connected wallboxes and charging stations. The dynamic load management ensures that each charging point provides the appropriate amount of power to connected EVs, reducing charging times. SCN operates without a master-slave hierarchy, meaning all charging stations are equal and communicate directly with each other, minimizing the risk of network failure.
Details:
- Local charging management for combining Alfen charging stations
- Supports 2 to a maximum of 100 charging points, no clustering required
- Modular integration of new charging points can be done later
- Local configuration or remote access available
- Compatibility: All Alfen wall boxes and charging stations
TMH ChargePilot
Load/Charging Management System
The ChargePilot is the central hardware component for the intelligent networking of charging points and the limited integration of power sources, such as PV systems. It is used when dynamic control of the charging infrastructure is required, along with the management of secondary loads and the prioritization of charging points.
Details:
- Precise phase-based distribution of available charging power
- Integration of energy meters, consumption, and supply data
- Indirect PV integration
- Optimal distribution of available power through prioritization of users and/or charging points
- Hardware-neutral communication with charging points via OCPP1.6 and Ethernet
- Monitoring of the grid connection and adherence to technical connection conditions and regulations
- Remote configuration access
- Set includes controller with pre-fuse, 16-port switch with Ethernet cables, and power supply
WAGO Application Load Management (WALM)
Intelligent load management software with controller
WAGO WALM is a load management software that enables intelligent and sustainable charging of electric vehicles. The charging power is continuously adjusted based on the current site load, utilizing all available capacities. With its wide range of interfaces, the software ensures compatibility with the most common wallboxes and charging stations. This guarantees simple, cost-effective, and sustainable integration into existing charging infrastructure. WAGO WALM comes pre-installed on the Compact Controller 100 from WAGO, providing a ready-to-use controller.
Details:
- Dynamic load management to regulate total charging power at the grid connection point
- Manufacturer-independent solution
- License model available in different tiers for integrated charging points (1, 5, 15, and 30 licenses)
- Surplus and price-dependent charging options
- Integration of storage and generation systems
- Prioritisation via RFID cards and tags
- Compatible with various WAGO controllers
- Package includes Compact Controller 100, software application, and software license
IO-Dynmaics Fleet and Charging Management
Innovative and battery-friendly charging management
The products from IO-Dynamics make it possible to realise highly intelligent charging management for fleets: the integration of flexible electricity tariffs along with weather and solar yield data for PV charging is just as possible as battery-saving charging. This innovative software helps to increase the efficiency of the charging system and maintain the value of fleet vehicles by optimising the distribution of large amounts of electricity in alignment with the respective battery capacity, especially in the case of large e-trucks.
Details:
- automated energy distribution in the electric vehicle fleet
- Display of charging levels and vehicle status in real time
- Adaptation of charging plans to the solar forecast and flexible electricity prices
- Longer vehicle utilisation thanks to battery-friendly charging
Smart1 Controller
Energy Management System
The Smart1 Controller is designed for complex energy systems, enabling the integration of components such as PV systems, battery storage, or heat pumps for power distribution to prioritized charging points. This product offers valuable features for the control, monitoring, and management of charging infrastructure, as well as connectivity to various additional components.
Details:
- Central hardware component for intelligent networking of all system components
- Phase-accurate distribution of available charging power
- Charging management via local interfaces (Modbus, UDP)
- Prioritisation of users and/or charging points
- Integration of photovoltaic systems, battery storage, and other energy system components
- Comprehensive, PLC-like control and regulation system for demand-based and flexible optimization of the energy system
- Monitoring and management of energy flows, including self-consumption optimization and peak load shedding
- Monitoring of grid connection and compliance with technical connection conditions and regulations
- Remote configuration access
